Traefik 2.0: Route external services through Traefik

Configure non-Docker backends in Traefik 2.0
By containeroo |

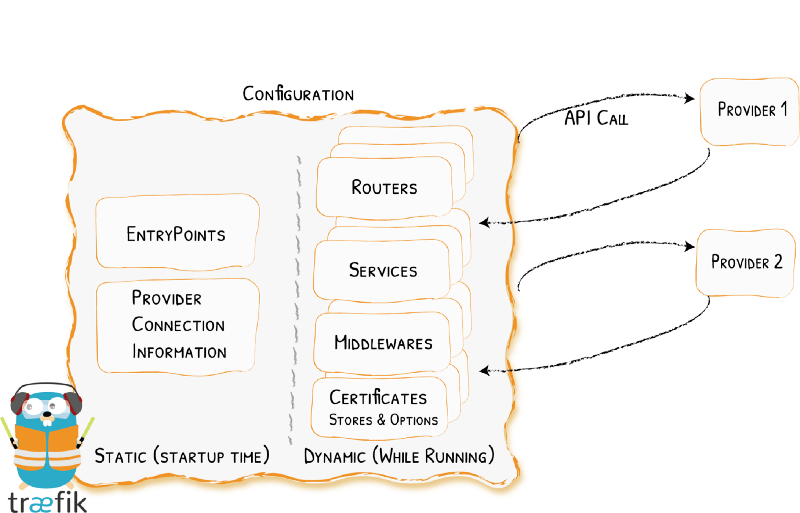

Header image

Image Source

Introduction

In this tutorial we will show you how you can route non-Docker services through Traefik.

Let’s suppose you want to access your Pi-hole admin console (http://192.168.0.10:80/admin) by browsing to pihole.example.com.

Prerequisites

You have read our other articles:

and you use this Traefik configuration.

Make sure you configure in the providers section of your /opt/traefik/data/traefik.yml an external configuration file /config.yml.

providers:
  docker:
  endpoint: unix:///var/run/docker.sock
  exposedByDefault: false
  file:
    filename: /config.yml

Setup config.yml

Edit /opt/containers/traefik/data/config.yml and create a new router pihole:

http:
  routers:
    pihole:
      entryPoints:
        - https
      rule: Host(`pihole.example.com`)
      middlewares:
        - addprefix-pihole
      tls:
        certResolver: http
      service: pihole

Still in /opt/containers/traefik/data/config.yml create a service for the new router:

services:
  pihole:
    loadBalancer:
      servers:
        - url: http://192.168.0.10:80
      passHostHeader: true

Because the admin panel of Pi-hole is only reachable at the path /admin, you have to create an additional middleware (also in /opt/containers/traefik/data/config.yml):

middlewares:
  addprefix-pihole:
    addPrefix:
      prefix: /admin

If you have configured Traefik as we’ve described in the advanced tutorial, your config.yml should now look like this:

http:
  routers:
    pihole:
      entryPoints:
        - "https"
      rule: "Host(`pihole.example.com`)"
      middlewares:
        - default-headers
        - addprefix-pihole
      tls:
        certResolver: http
      service: pihole

  services:
    pihole:
      loadBalancer:
        servers:
          - url: "http://192.168.0.10:80"
        passHostHeader: true

  middlewares:
    addprefix-pihole:
      addPrefix:
        prefix: "/admin"

    https-redirect:
      redirectScheme:
        scheme: https

    default-headers:
      headers:
        frameDeny: true
        sslRedirect: true
        browserXssFilter: true
        contentTypeNosniff: true
        forceSTSHeader: true
        stsIncludeSubdomains: true
        stsPreload: true

    default-whitelist:
      ipWhiteList:
        sourceRange:
          - "10.0.0.0/24"
          - "192.168.0.0/16"
          - "172.0.0.0/8"

    secured:
      chain:
        middlewares:
          - default-whitelist
          - default-headers

We also added the middleware default-headers to the new pihole router.

Don’t forget to restart Traefik docker restart traefik to reload the new config.yml!

Wildcard certificates

If you use a wildcard certificate as described in this article, you must leave the tls section empty {}:

http:
  routers:
    pihole:
      entryPoints:
        - https
      rule: Host(`pihole.example.com`)
      middlewares:
        - default-headers
        - addprefix-pihole
      tls: {}
      service: pihole

Bonus example

Here you can find a complete config.yml to route a Synology Diskstation and Pi-hole through Traefik.

http:
  routers:
    pihole:
      entryPoints:
        - "https"
      rule: "Host(`pihole.example.com`)"
      middlewares:
        - default-headers
        - addprefix-pihole
      tls:
        certResolver: http
      service: pihole

    synology:
      entryPoints:
        - "https"
      rule: "Host(`synology.example.com`)"
      middlewares:
        - default-headers
      tls:
        certResolver: http
      service: synology

  services:
    pihole:
      loadBalancer:
        servers:
          - url: "http://192.168.0.10:80"
        passHostHeader: true

    synology:
      loadBalancer:
        servers:
          - url: "http://192.168.0.11:5000"
        passHostHeader: true

  middlewares:
    addprefix-pihole:
      addPrefix:
        prefix: "/admin"

    https-redirect:
      redirectScheme:
        scheme: https

    default-headers:
      headers:
        frameDeny: true
        sslRedirect: true
        browserXssFilter: true
        contentTypeNosniff: true
        forceSTSHeader: true
        stsIncludeSubdomains: true
        stsPreload: true

    default-whitelist:
      ipWhiteList:
        sourceRange:
          - "10.0.0.0/24"
          - "192.168.0.0/16"
          - "172.0.0.0/8"

    secured:
      chain:
        middlewares:
          - default-whitelist
          - default-headers

As you can see, the Synology router has no extra middleware, because a Synology Disksation is accessible without any additional path.
